DPR Unwinder for Epson ColorWorks C6500Au Color Label Printer

Description

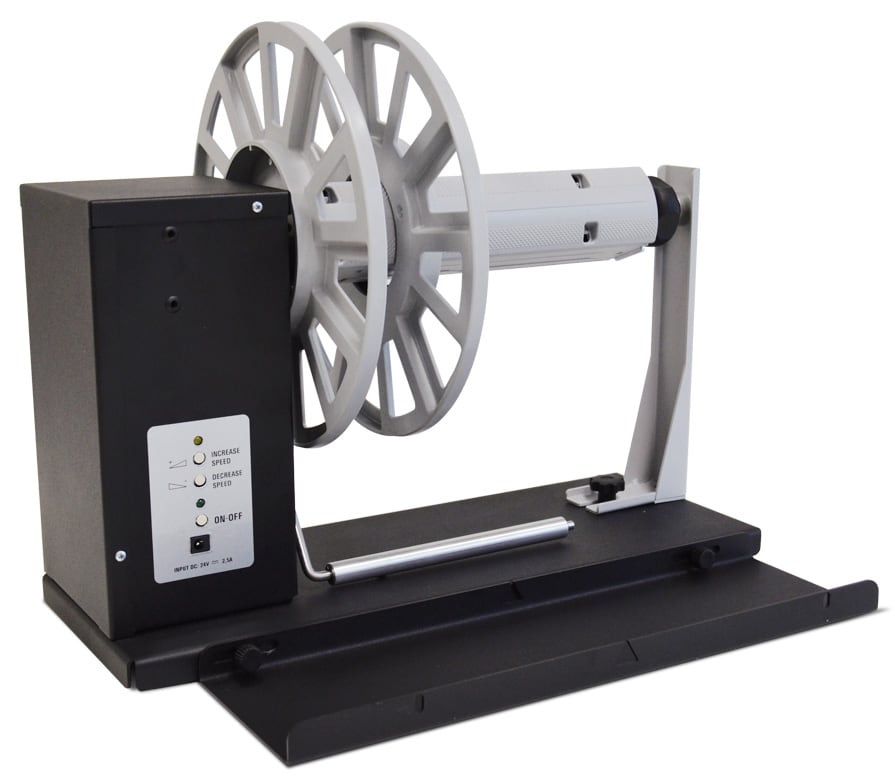

DPR Unwinder for Epson ColorWorks C6500Au
Product Code: UW6500A

This DPR unwinder is specifically designed for the Epson ColorWorks C6500Au label printer.

It automatically unwinds the rolls with face-out labels. It can handle rolls up to 8.66″ (220 mm) media wide and has an outside diameter up to 10″ (250 mm). This unwinder is equipped with a fixed 3″ core holder. Ideal for increasing the input roll capacity.

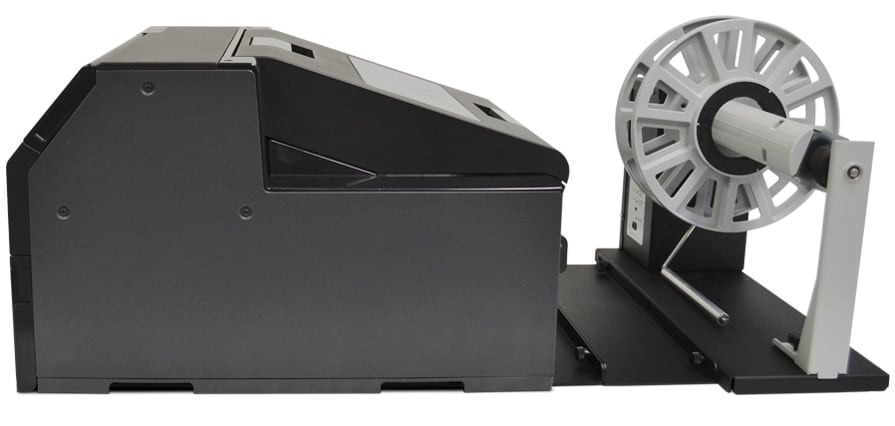

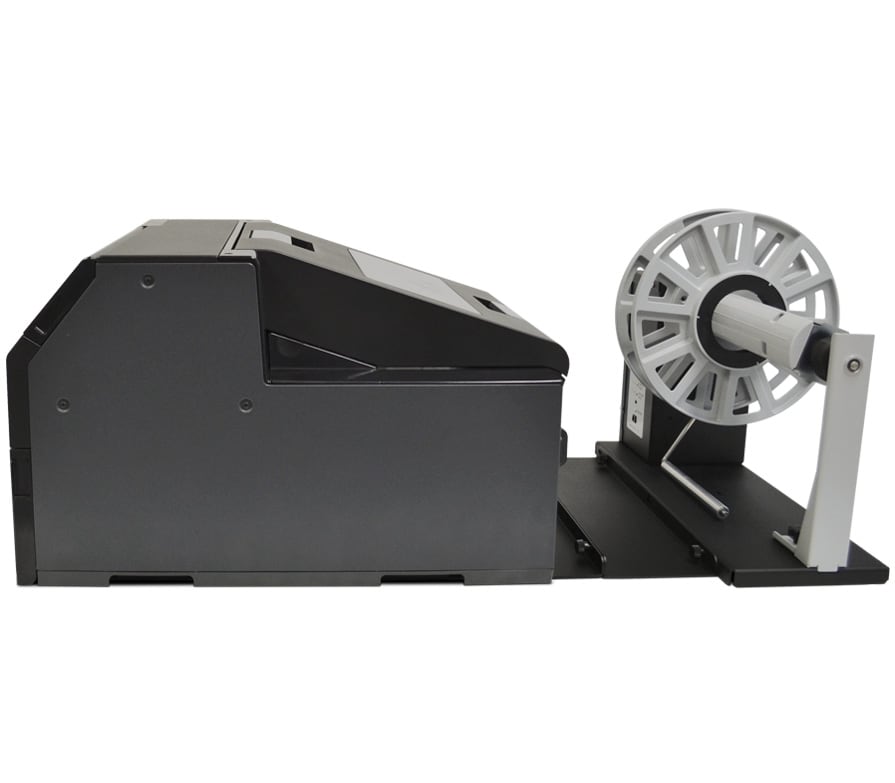

Printer Plate – To ensure a perfectly aligned media path, a specific baseplate that easily accommodates the Epson C6500Au is recommended, allowing the unwinder unit to be safely aligned with the printer.

Label Unwinder:
When the printer feeds the media for printing, the tension arm rises, and the device unwinds the media.
When the tension arm is in the middle position, the device is idle.
When the printer pulls back the media, the tension arm goes down, and the device rewinds it.

An external power supply 100/240VAC – 2.5A  at 24V allows an electronic circuit to provide, through the tension arm, the automatic adjustment of the rotation direction and speed.

Optional Roll-to-Roll System for the Epson ColorWorks C6500Au label printer.
